| Τόπος καταγωγής: | Επαρχία Shandong, Κίνα |
|---|---|
| Μάρκα: | SH |
| Πιστοποίηση: | ISO9001,CE |
| Αριθμό μοντέλου: | SHJM350, SHJM650, SHJM800 |
| Ποσότητα παραγγελίας min: | 1 σετ |
| Τιμή: | US $7,500-13,950 / Set |
| Συσκευασία λεπτομέρειες: | συσκευασία πλαισίων σιδήρου ή φόρτωση εμπορευματοκιβωτίων |
| Χρόνος παράδοσης: | Μέσα σε 15 ημέρες |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 1000 σύνολα/έτος |
| Ονομα: | η ακρίβεια ξαναπριονίζει την πριονοκορδέλλα | Κατάσταση: | Νέος |
|---|---|---|---|
| Τύπος: | πριόνι ζωνών | Κύρια ισχύς: | 15kw, 18,5kw, 22kw |
| Κινητής τροφοδοσίας: | 1,1kW, 1,5kW | Διάμετρο πριονιστήρα: | 700mm |
| Μέγιστο πλάτος πριόνου: | 800mm | Μέγιστο. Ύψος επεξεργασίας: | 220mm |
| Ταχύτητα τροφοδοσίας: | Αναστροφέας, ταχύτητα διευθετήσιμη | Εγγύηση:: | 1 έτος |
| Παρέχεται υπηρεσία μετά την πώληση: | Σε απευθείας σύνδεση υποστήριξη, τηλεοπτική τεχνική υποστήριξη, ανάθεση και κατάρτιση | ||
| Επισημαίνω: | electric horizontal bandsaw sawmill,precision wood resaw machine,industrial horizontal sawing equipment |
||
For high-volume woodworking operations, achieving flawless, consistent cuts isn't just a goal—it's a necessity for profitability. An industrial precision resaw bandsaw is engineered to deliver exactly that: unparalleled accuracy and efficiency in every cut. This machine transforms raw lumber into high-value products by maximizing yield and ensuring a superior finish, directly boosting your bottom line through reduced waste and increased output.
Unmatched Cutting Accuracy & Consistency
Benefit: Produce glue-ready laminates and perfectly dimensioned lumber with exceptional smoothness, minimizing the need for secondary planing or sanding.
Features Behind the Benefit: A sophisticated fence system ensures precise workpiece positioning, while computer-balanced wheels and ultra-rigid construction eliminate vibration for dead-straight cuts.
Industrial-Grade Construction for Demanding Environments
Benefit: Experience rock-solid stability and durability that stands up to the rigors of continuous production, ensuring long-term reliability and minimal downtime.
Features Behind the Benefit: Built with heavy-duty components like solid cast-iron wheels, robust trunnions, and a large, stable cast-iron table that forms an unshakable foundation.
| Horizontal Resaw Band Saw Mills | |||
| Model | SH350 | SH650 | SH800 |
| Saw Wheel Diameter | 710 mm | 710 mm | 710 mm |
| Maximum Cutting Width | 350 mm | 650 mm | 800 mm |
| Maximum working Wood Height | 200 mm | 220 mm | 220 mm |
|
Max Sawing Height
|
100 mm | 110 mm | 110 mm |
|
Min Sawing Thickness
|
2 mm | 2mm | 2mm |
| Feeding speed | Variable Frequency Adjusted Speed | ||
| Main Electric Motor Power | 15 KW | 18.5 KW | 18.5KW |
| Up/down motor | 0.37kw | 0.37kw | 0.37kw |
| Feeding motor | 1.1kw | 1.1kw | 1.5kw |
| Machine Weight | 1000 KG | 1200 KG | 1400 KG |
![]()
![]()

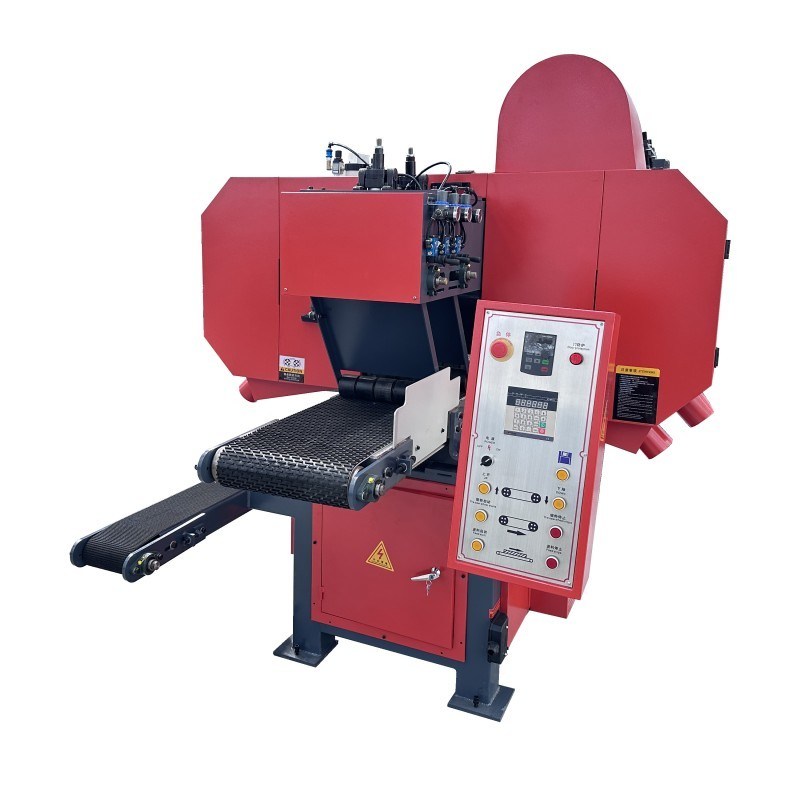

Precision Slice Horizontal Band Sawmill
|
Model
|
SHJM-400
|
SHJM-650
|
SHJM-800
|
|
Saw Wheel Diameter
|
600MM
|
600MM
|
700MM
|
|
Max Sawing Wood Width
|
400MM
|
650MM
|
800MM
|
|
Max Sawing Height
|
110MM
|
||
|
Min Sawing Thickness
|
2MM
|
||
|
Feeding Speed
|
0.1-30 Meters/Minute
|
||
|
Motor Power
|
15KW
|
18.5KW
|
22KW
|
|
Feeding Motor
|
0.75KW |
0.75KW
|
1.5KW
|
![]()
![]()
This machine is purpose-built for industrial production settings, cabinet shops, and specialized mills focused on high-volume, precision work. If your operations involve frequently breaking down thick stock or require the ability to produce thin, consistent slices of wood with a flawless finish, a precision resaw is an indispensable asset.
